Product Description Color Sorters are machines used on the production lines in bulk food p···

Min.Order Quantity:

1 Piece/Pieces

Port:

Shenyang

Operating instructions

Product Details

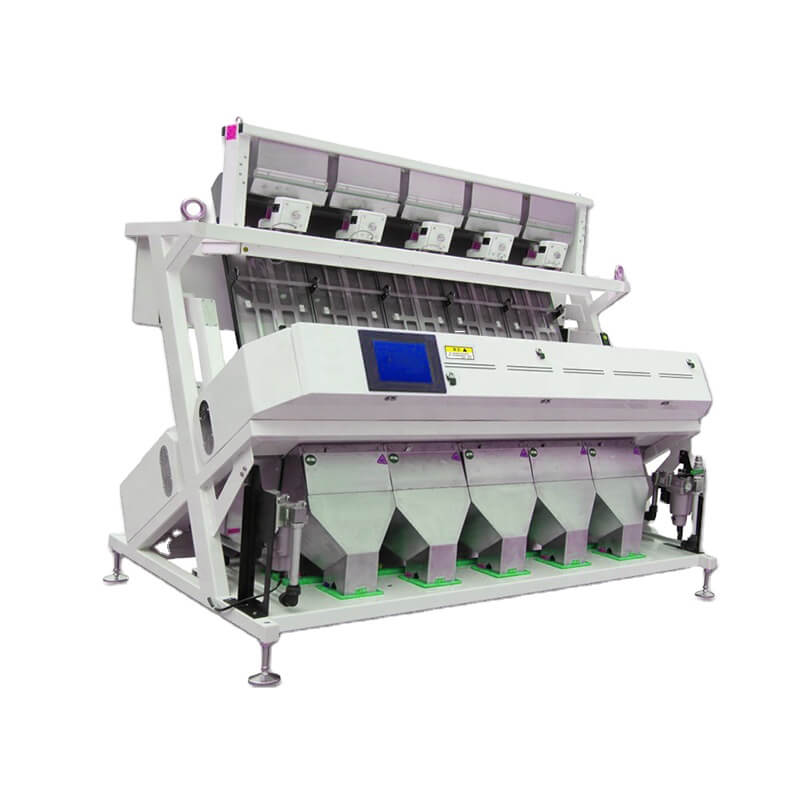

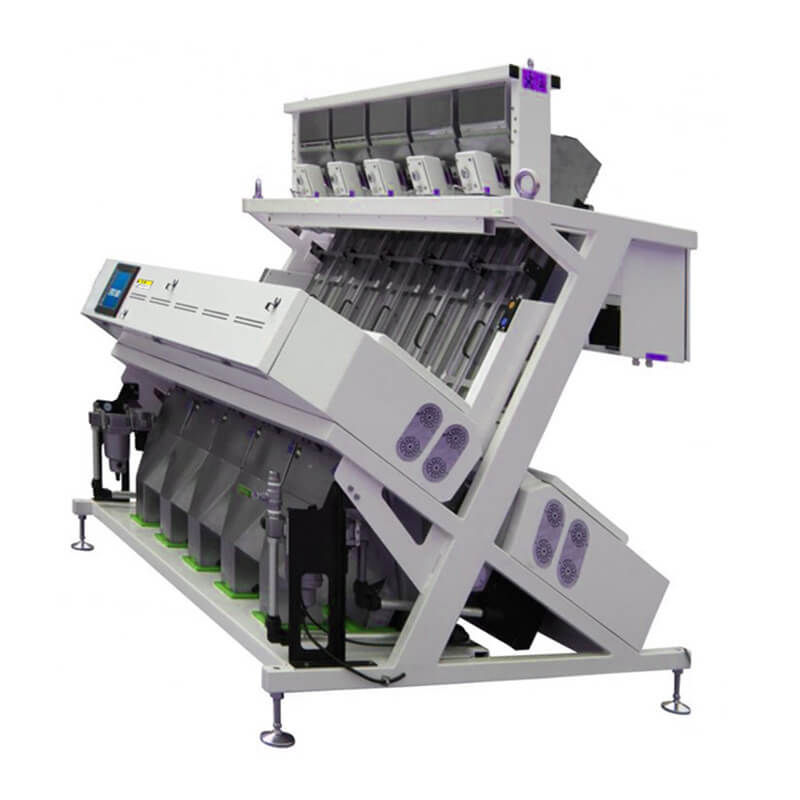

Product Description

       Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.

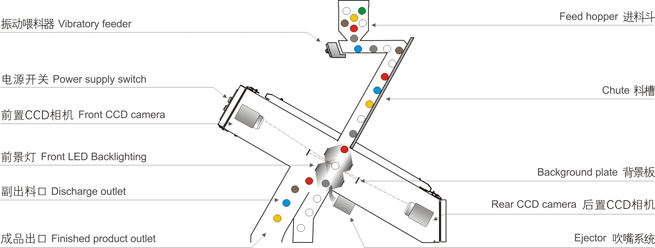

        In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

OUR COMMITMENTS

      Focus on the field of color sorting and lead the industry standards; Create unlimited possibilities.
       Analyze every detail and select every raw material.Multi-function,multi-purpose,widely used for rice,grain,cereal, plastics,etc.

Examples of color sorting

The targeted sorting technology ensures no defect of light yellow would be missed from a million grains of rice.                       Standard edition with the Spectrum Confocal 2.0 removes glass, desiccants, transparent plastics and motley plastics.  Flagship edition with the InGaAs Infrared system custom for rice sorting eliminates foreign materials.

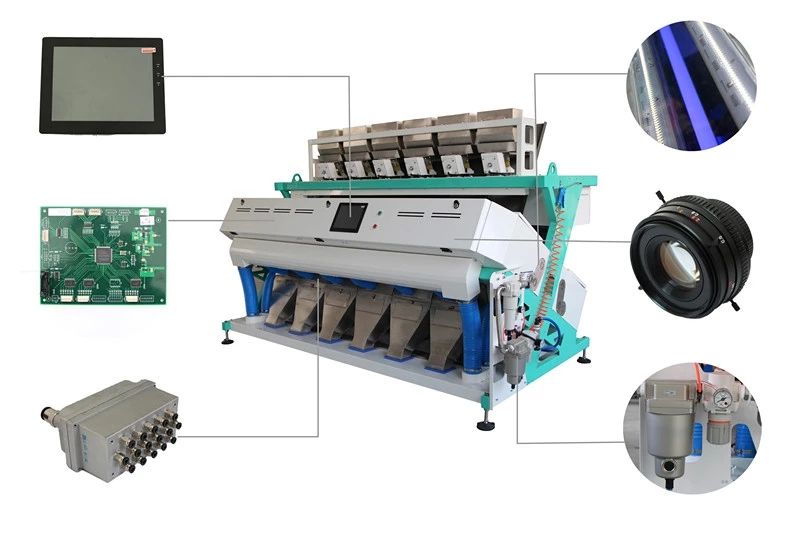

Detailed Images

FOCUS 1:

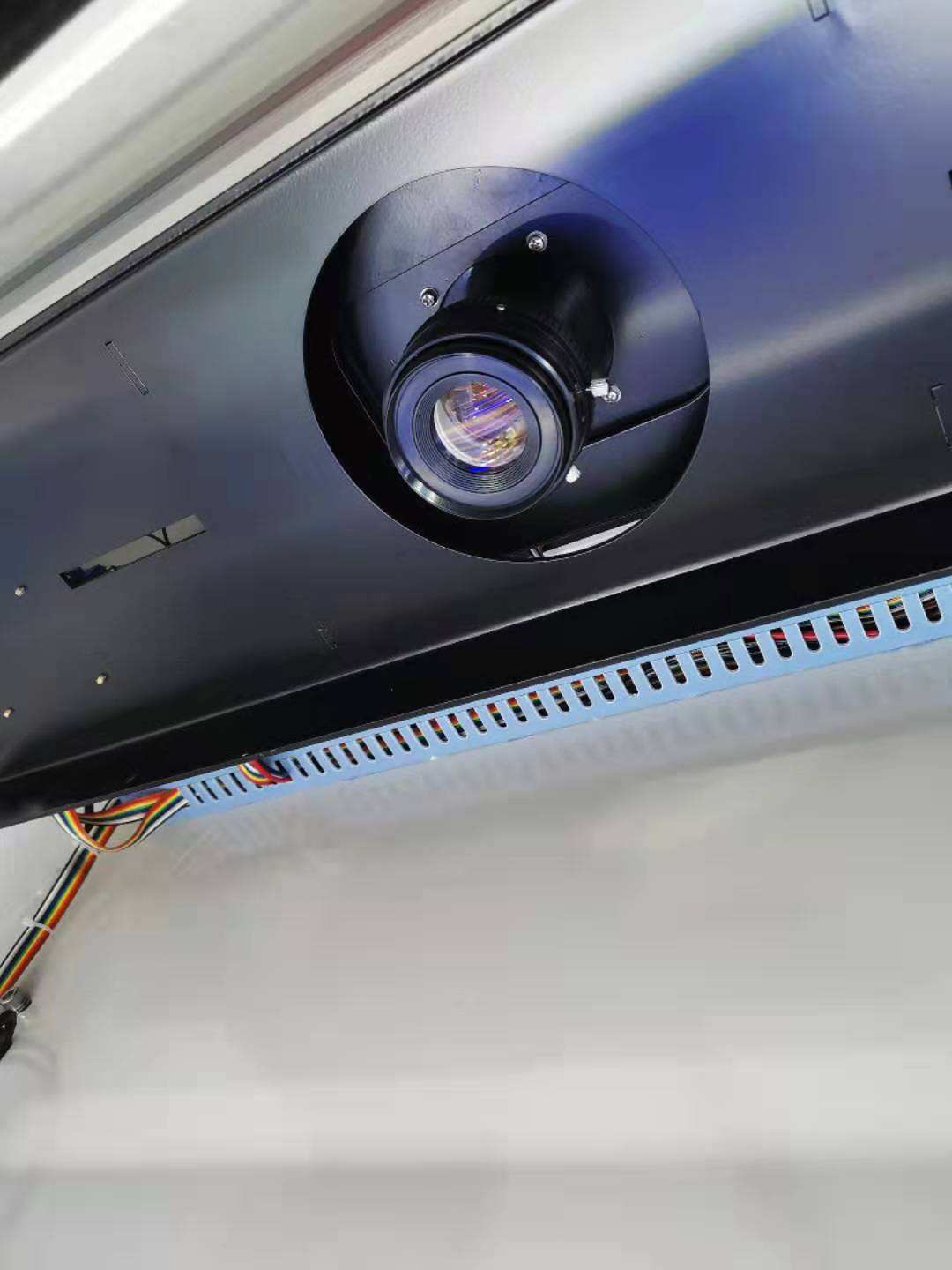

     5400-pixel CCD camera makes sure that, it is able to recognize more accurately,analyze more quickly and sort more precisely
      The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.

FOCUS 2:

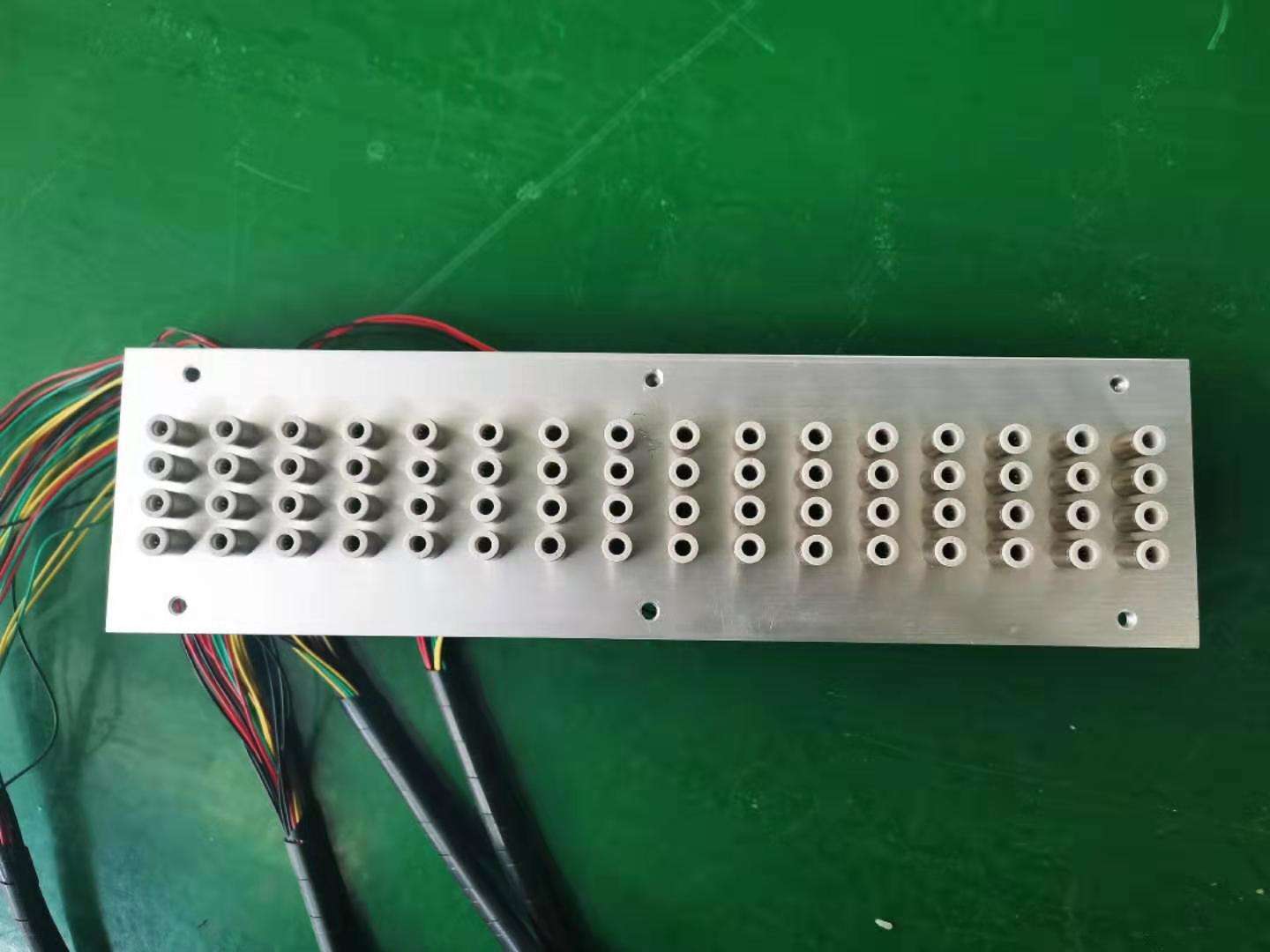

   Imported high-quality solenoid valves makes machines work more stably for longer time.
   The new type of high frequency valve allows low consumption of electricity , high durability,and easy maintenance.

FOCUS 3：

     Humanized touch panel,which is easier to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.      It is also able to support for multiple languages, preservation and switching of multiple color selection modes

FOCUS 4：

     American ultra-high speed FPGA processor, 3D intelligent identification technology.Intelligent system with
self-learning,self-operating
     Powerful image processing algorithm can accurately identify the color and shape of materials.

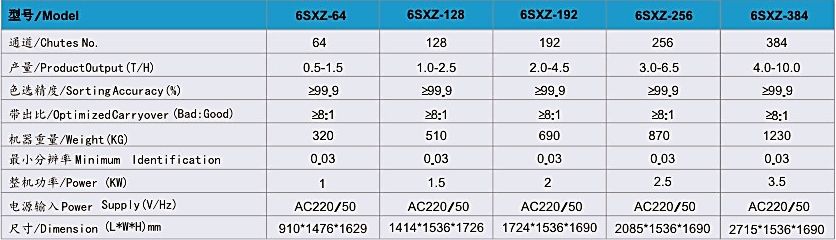

Size Information
