Magnetic Accessories

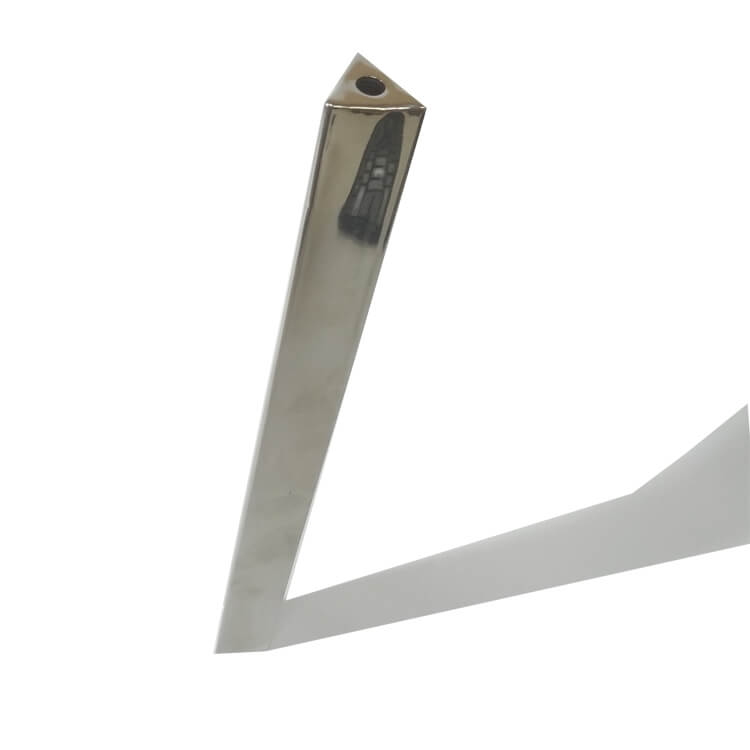

Triangular magnet

Powerful NdFeB neodymium Magnetic Baris made from permanent magnets, stainless steel tubes···

Min.Order Quantity:

1 Piece/Pieces

Port:

Shenyang

Product Details

Powerful NdFeB neodymium Magnetic Bar is made from permanent magnets, stainless steel tubes and metal frames and is used to remove ferrous parts and tramp iron in the field of medicines, textiles, foods, grains, plastics etc. The magnets bars can be strong Neodymium magnets, Alnico magnets and ferrite magnets etc.There are vairous outline shapes and handling capacity for your choice. With unique design for high gradient field, square bar magnet could be widely used in food, medicine, chemical, plastic, new materials, mine, etc. It could remove iron from materials.



Product show:

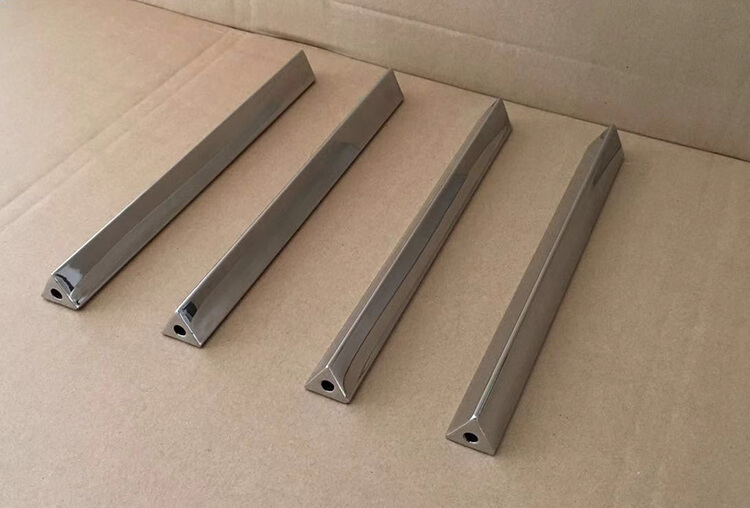

77455 (2).jpg

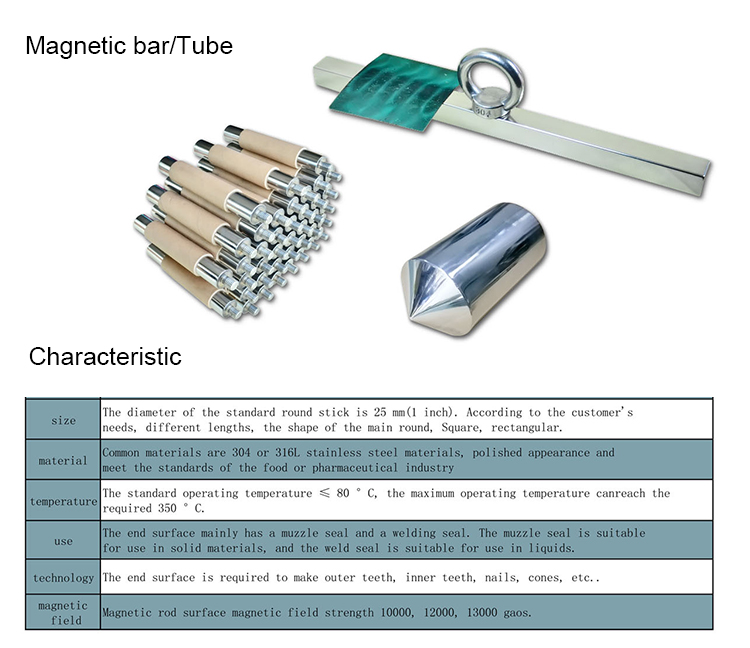

Specification:

Magnetic bar's

field intensity

DiameterMaterial

Surface magnetic

 field intensity

Operating

temperature

Surface

material

Size
15000GSF30NdFeB1480080°C304/316LOEM
14000GS14000100°C
12000GSF2512000100°C
10000GS1000080°C
9000GS9000120°C
3000GS3000150°C

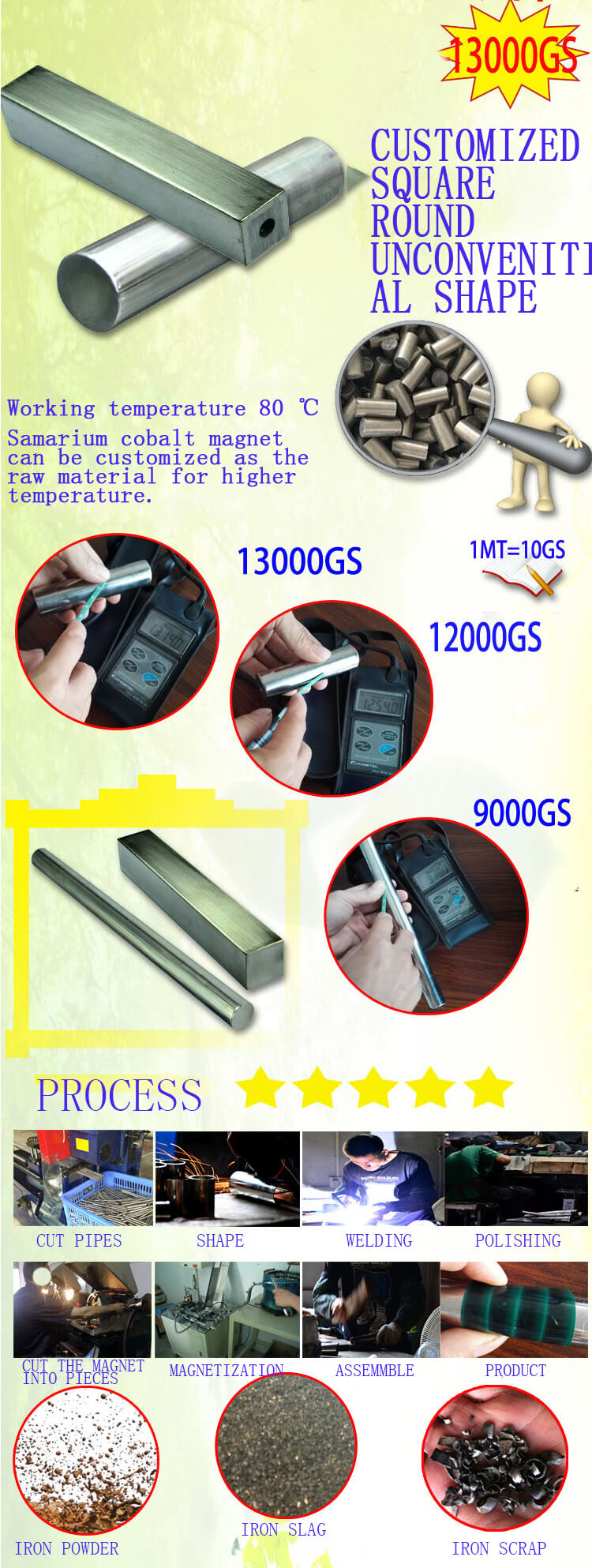

Details (1).jpg




We can design the weight, specification and shape of the magnetic bar according to your requirement,or provide solutions and advices based on your equipment.
