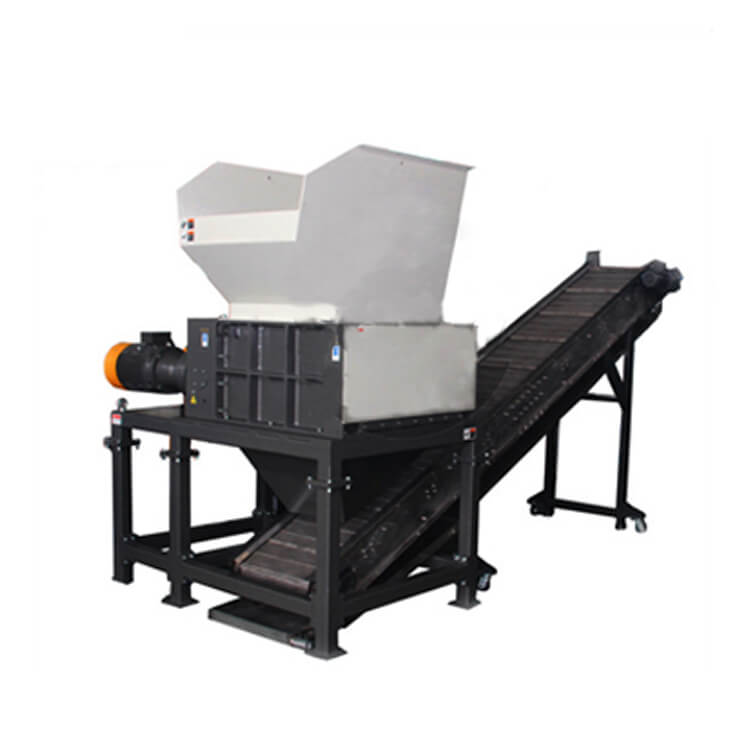

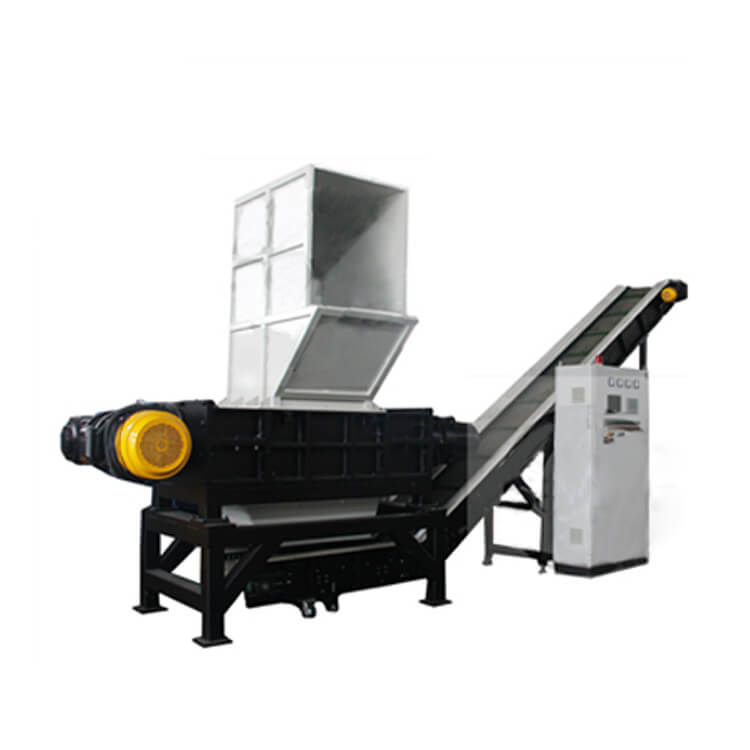

Four shaft shredder

model： FS seriesFS series Four Shaft Shredder has advantages of strong usage universality,···

Min.Order Quantity:

1 Piece/Pieces

Port:

Shenyang

Operating instructions
Product Details

model： FS series

FS series Four Shaft Shredder has advantages of strong usage universality, accessory standardization, modularization design and high interchangeability. It fits for shredding plastic drums, plastic bottles, metal drums, circuit boards, household waste, hazardous waste etc. This design can create the maximum benefit and control output material size according to customers' different requirements & shred materials.


Item       Model

FS8080

FS10080

FS100100

FS100120

FS130100

FS130120FS160160

Motor Power (kw)

2×11

2×18.5

2×18.5

2×22

2×15+2×22

2×15+2×30

2×30+2×45

Main Blade Thickness (mm)

18.5

40

40

40

50

50

50

Main Blade Tactical Diamete (mm)

φ245

φ320

φ320

φ320

φ430

φ430

φ534

Main Blade (pcs)

42

21

26

31

20

24

32

Main Shaft Rev (rpm)

16-25

16-25

16-25

16-25

10-15

10-15

10-15

Height of discharge port (mm)

650

980

980

980

1000

1000

1400

Screen Mesh (mm)

φ25

φ40

φ40

φ40

φ60

φ60

φ60

Cutting Chamber (mm)

800×800

1000×800

1000×1000

1000×1200

1300×1000

1300×1200

1600×1600

Dimension (mm)

2180×1200×2065

2410×1400×2730

2610×1400×2730

2810×1400×2730

3200×1650×2930

3400×1650×2930

4360×2200×3630

Weigh (kg)

Approx 2000

Approx 5000

Approx 5500

Approx 6000

Approx 11500

Approx 12500

Approx 18000
